Floor Wastes & Grates for Wollongong & Illawarra Bathrooms
A floor waste is the one fitting in the bathroom you never think about until it’s the wrong one — and in a modern wet-area design it’s just as much a decision as the tapware or the tiles. Get it right and it disappears into the floor or reads as a clean architectural line; get it wrong and a cheap plastic grate is the first thing the eye lands on. This is the drainage corner of our Bathroom Accessories range: tile-insert point wastes that vanish under a cut tile, decorative brass grates you can swap without lifting the floor, and long linear channels in marine-grade stainless for a sharp, contemporary walk-in shower. We stock Art Aust (including the Bounty Bathroomware ranges) and DTA’s Hayman drainage, chosen for construction that stands up to the salt air and constant wet of South Coast bathrooms. Below we explain the choices, then walk through the specific wastes and channels we recommend.
Point Waste vs Linear Grate — and Tile-Insert vs Patterned Cover
There are really two decisions to make. The first is point waste vs linear channel. A round or square point waste sits at the low spot of a floor that falls in from all four sides — simple, proven, and the right call for most laundries and compact showers. A linear channel runs the width of the shower so the floor only has to fall one way, which suits large-format tiles (fewer cuts, a single clean plane) and gives that modern strip-drain look. The second decision is tile-insert vs patterned cover. A tile-insert grate has a recessed tray you fill with a cut piece of your floor tile, so the drain almost disappears; a patterned or bar cover — woven brass, a square-perforated stainless top — is meant to be seen as a deliberate detail. Neither is better; it’s whether you want the drain to hide or to feature. When you’re planning falls and membrane, it pairs closely with your base choice — see our shower bases & tile trays guide — and because a waste is a live water penetration, it’s worth knowing the early signs of hidden bathroom water damage. For the accessories that share the space, browse our robe hooks & toilet roll holders and shelves & soap dishes.

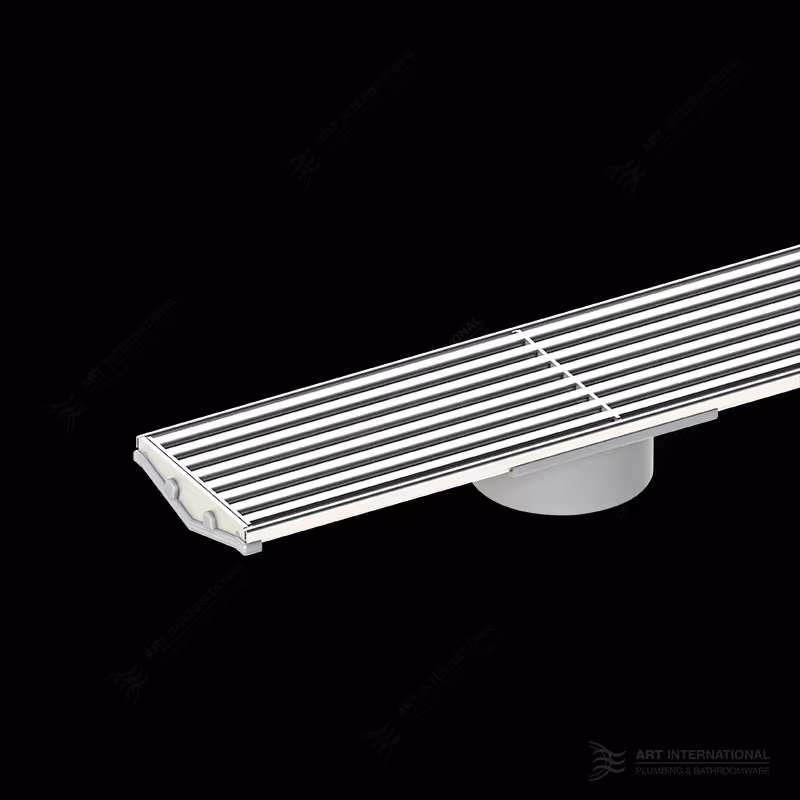

Art Aust 1200mm SS316 LAYL Kit with Linear Grate
The Long As You Like (LAYL) channel is the most flexible drain we stock, and the one to reach for when the shower doesn’t fit a standard length. It’s a build-to-length system: you cut the 1200mm 316 stainless steel channel down to suit the opening and site the waste outlet anywhere along its run, then join kits end-to-end for anything over 1200mm. The 100mm outlet is included (80mm and 50mm outlets are also available), and a hole saw comes in the box so the outlet can be positioned exactly where the plumbing wants it. Marine-grade 316 stainless is what makes it genuinely dual-purpose — corrosion-resistant enough for an outdoor shower or a poolside deck, not just an indoor Illawarra bathroom. This variant ships with the brushed linear bar grate; the same kit is offered with a bar or tile-insert top if you’d rather the drain hide. If you want a channel cut to a non-standard run, this is the kit that does it.

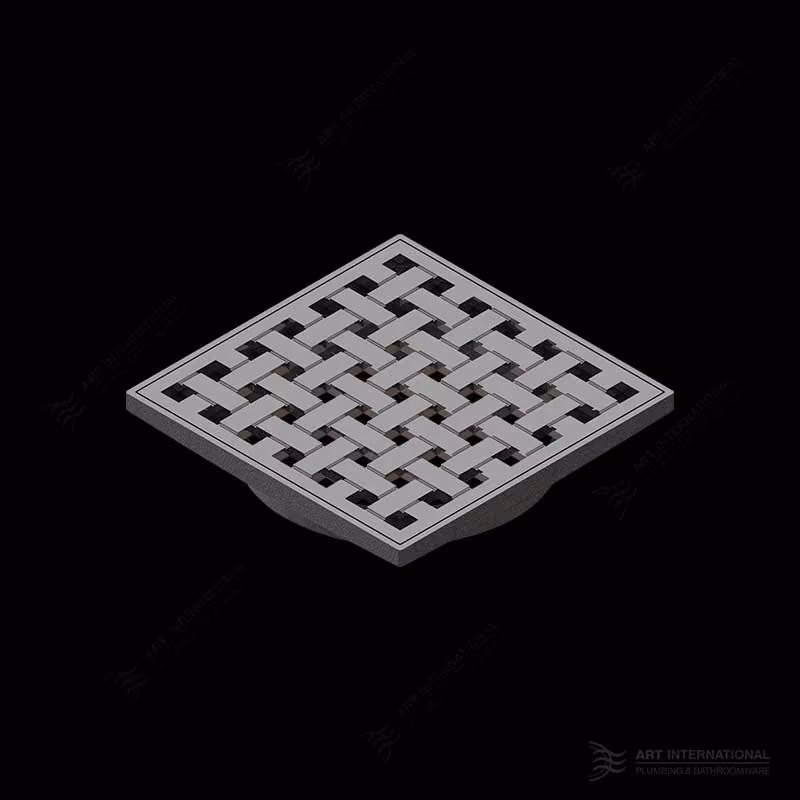

Art Aust 100mm Woven Organics Floor Waste
When the drain is going to be seen, this is how you make it a feature rather than an afterthought. The Woven Organics waste is a decorative tile-insert-style point grate in solid cast and forged brass — both the patterned insert and the base are brass, not plated pot-metal — finished in chrome plate to AS 1192-2004. It drops into a standard 100mm outlet and steps down to 80mm pipe with the optional adapter (code 32244), so it retrofits an existing floor waste without touching the plumbing. It’s part of the Organics range by Bounty Bathroomware, a family of interchangeable grates in five designs — two Woven options plus Flow, Slotted and Dreamtime — which means you can change the look of a floor waste later without lifting a single tile. The Woven pattern is the range’s classic, more traditional motif, a good match for a period-style Wollongong bathroom. Solid-brass construction is also what keeps it looking right after years of South Coast humidity.
Art Aust 1200x80mm Bermuda Channel Tile Insert
The Bermuda is the channel to choose when you want the drainage to disappear completely. It’s a 1200mm linear tile-insert channel with an 80mm grate width, and the top is a tray you fill with a strip of your own floor tile — laid in, the drain reads as a thin grout line rather than a grate. Installation is where it earns its keep: the base has an adjustable height and tilt so the frame can be dialled in to sit dead flush and lock positively into the waterproofing membrane, and there’s a built-in internal fall that moves water to the outlet without relying on the screed alone. The strainer is stainless steel, and it’s part of the Bounty Bermuda Channel range offered in standard lengths of 300, 600, 900, 1000 and 1200mm, in tile-insert (this one) or linear/bar-grate tops. For any run that falls outside those standard sizes, Art Aust points you back to the cut-to-length SS316 LAYL kit above.
DTA Hayman Tile-In Floor Drain 100 × 100 (Chromed Brass)
DTA’s Hayman tile-in drain (code FDCB100TI) is the neat, no-fuss point waste for the many rooms that don’t need a full channel — a compact shower, a laundry, a covered outdoor area. It’s a square tile-insert floor waste: the recessed 100 × 100mm tray, about 10mm deep, takes a cut tile so the drain blends into the surrounding floor for a minimal, near-seamless finish. The face flange is a tidy 115 × 115mm, the body stands roughly 50mm tall to the 76mm outlet, and there’s an integral bucket stand built in. It’s made from chromed brass, so it has the weight and corrosion resistance to suit bathrooms, laundries and external areas alike. If you like the hidden-drain look of the Bermuda channel but the room only wants a single point of fall, this is the simpler, tidier way to get it.

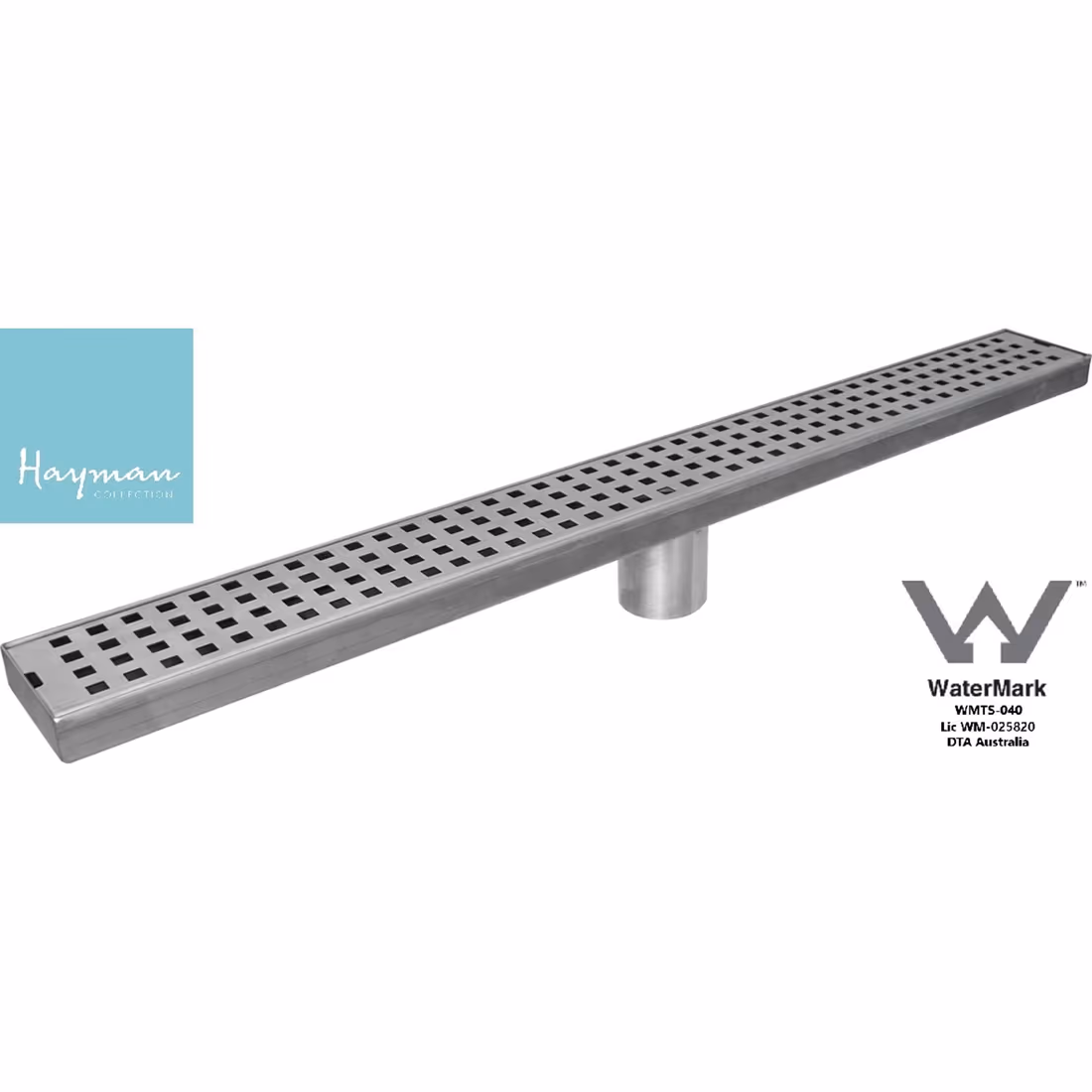

DTA Hayman Long Floor Drain 600mm — Square-Pattern Cover
This is the linear drain for a modern walk-in shower where you want the grate on show rather than hidden. The Hayman Long Floor Drain (code FLLD600SQ) is a 600mm shower channel in 316-grade stainless steel with a square-perforated cover — a crisp, geometric top that reads as a deliberate design line across the floor. Running the full width of the shower means the floor only needs a single fall, which keeps large-format tiles flat and cuts to a minimum. The channel body is a slim ~68mm wide by ~21mm high, with a 45mm centre outlet sized to suit a 50mm waste. It’s WaterMark approved (WMTS-040, Lic WM-025820), so it’s compliant for Australian installations, and it belongs to a range spanning 300 to 1800mm in stainless or black, with four cover designs — this is the 600mm square-pattern option. Pick it when the drain should look intentional, not invisible.
Get the Drainage Detail Right — Talk to Our Team
A floor waste is a small fitting that quietly decides how the whole floor looks and how well it drains for the next twenty years, so it’s worth matching to the room rather than grabbing whatever’s in the box. Bring your tile, your shower size and your fall to us and we’ll steer you between a hidden tile-insert point waste, a decorative brass grate and a full linear channel — and get the outlet and membrane detail right the first time. While you’re finishing the room, coordinate the rest of the space with our shelves & soap dishes and robe hooks & toilet roll holders, or head back up to the full Bathroom Accessories range. Serving Wollongong, Unanderra and the wider Illawarra and South Coast — get in touch and we’ll help you specify it.
