Tile Leveling Systems for Wollongong & Illawarra Tilers
Large-format porcelain and heavy stone tiles have taken over Illawarra bathrooms and living spaces — and they’ve made lippage the number-one enemy of a professional finish. A single high edge on a 600×1200 tile catches the light, catches bare feet, and is impossible to fix once the adhesive cures. Traditional cross spacers set the joint width but do nothing to hold adjacent tiles flush, so tilers across Wollongong and the South Coast have moved to dedicated leveling systems that clamp tiles level while the bed sets. This is the trade-and-serious-DIY corner of our Tools range: the clips, wedges, caps and pliers that guarantee a flat plane on the big, dense tiles that show every imperfection. Below we compare the two systems we stock — Lev Tec’s reusable clip-and-wedge and DTA’s lippage-cap — honestly, so you can pick the one that suits your work.
How Leveling Systems Beat Lippage — Clip-and-Wedge vs Cap
Every leveling system works on the same principle: a device sits under the joint between two freshly laid tiles and is tensioned to pull both faces into the same plane, holding them there until the adhesive grabs. The two approaches differ in the hardware. In a clip-and-wedge system (Lev Tec), a thin base clip slots under the tile edges and a reusable wedge is driven through it to apply pressure; once cured, the clip snaps off at a breakpoint below the tile and the wedge is recovered for the next job. In a lippage-cap system (DTA), a threaded spacer sits under the joint and a reusable cap is tensioned down onto it to clamp the tiles, then knocked off after set. Both eliminate lippage; the choice comes down to feel, joint control and what your crew is used to. For deeper technical background on why a dead-flat plane matters underfoot, see our guide to the best tile for a shower floor, and for planning big tiles in tight rooms, large-format tiles in small bathrooms.
Lev Tec LEVTEC Clips x 250 — 1mm Spacing
The clip is the base component of the LEVTEC system and the part that sets your joint. This variant fixes a 1mm joint — the crisp, minimal grout line so many contemporary Wollongong bathrooms are built around — and comes in a bag of 250 white clips for floor and wall work. In use, you spread and lay the tile, tuck the clips slightly back from the edge, butt the next tile up against them, then drive a LEVTEC wedge through to lock both faces flush. Once the adhesive has set you knock the clip sideways on its lug — mallet on walls, a boot on floors — to snap it off at the breakpoint below the surface, leaving the joint clear for grout. It’s a single-use base that pairs with the reusable LEVTEC wedges and traction plier below.
Lev Tec LEVTEC Wedges x 250 — Reusable
The yellow LEVTEC wedge is the reusable half of the system and the part that does the levelling. It slides through the clip and is pushed home — by thumb on small jobs, or with the traction plier on anything larger — applying the pressure that pulls adjacent tiles into one flat plane and holds them there while the bed cures. Unlike the single-use clip, the wedge is recovered after set: knock the clip sideways to release it and the wedge drops out ready for the next tile. Sold in a pack of 250, it works with every LEVTEC clip spacing, so an Illawarra tiler can carry one bag of wedges across 1mm, 2mm and 3mm jobs and only swap the clips. Buying wedges by the pack and reusing them is what makes the clip-and-wedge system economical over a season of work.

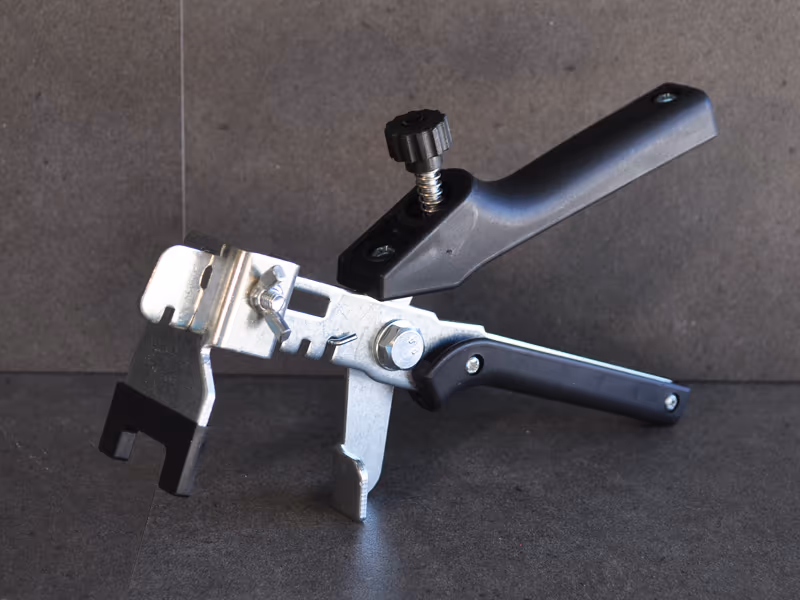

Lev Tec LEVTEC Traction Plier — Adjustable
The traction plier is the core tool of the LEVTEC clip-and-wedge system and the difference between a fast, consistent floor and a sore hand. Instead of relying on thumb pressure — which varies tile to tile and fades over a big area — the plier drives each wedge through its clip with controlled, repeatable force, so every joint across a Wollongong living-room floor is set to the same tension. It’s adjustable to suit different tile thicknesses, from slimline wall tiles to chunky 20mm outdoor pavers, and the silver-finish body is built for daily site use. On the large-format and heavy stone tiles that dominate Illawarra jobs, the plier is what makes the system genuinely faster than fighting wedges by hand.

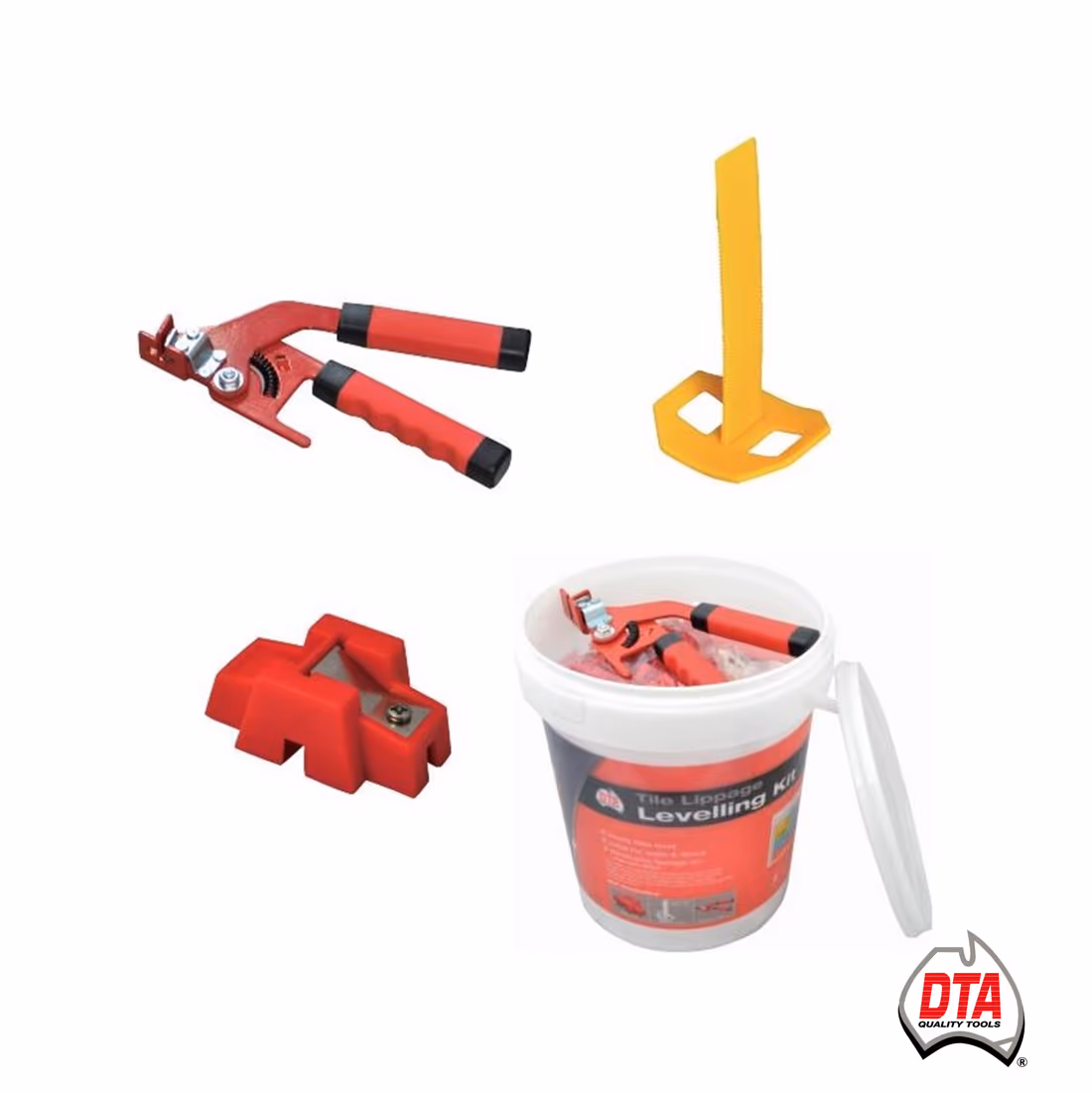

DTA Lippage Cap Levelling Starter Kit — 100pc
DTA’s cap system takes a different route to the same flat finish, and this starter kit (code LIPK100) is the easiest way onto it. The kit contains 100 caps, 100 threaded spacers and one LIPTL lippage gun — everything a South Coast tiler needs to start eliminating lippage on floors and walls out of a single box. The threaded spacer sits under the tile joint and the reusable cap clamps down onto it, holding both tiles level while the adhesive cures; after set you knock the cap off and it goes back in the tub for reuse, while the spacer stem snaps below the surface. Tilers who prefer the positive, threaded clamp of a cap over a driven wedge tend to favour this system — it’s a matter of feel more than performance, and the starter kit lets you try it without committing to bulk components.
DTA Lippage Levelling Gun — LIPTL
The lippage gun (code LIPTL) is the hand tool that makes the DTA cap system work, and the direct counterpart to Lev Tec’s traction plier. It applies controlled tension to seat each cap onto its spacer, clamping the tiles level and squeezing out lippage as the bed sets — and, crucially, it delivers the same tension on every cap, which is what keeps a big Illawarra floor reading as one dead-flat plane rather than a patchwork of slightly different pressures. It’s lightweight and durably built for repeated site use, and it’s included in the starter kit above or available on its own to top up a crew that’s already running caps and spacers. If you’ve settled on the cap approach, this is the tool the whole system depends on.
Which System — and What Else You'll Need
There’s no wrong answer between Lev Tec’s clip-and-wedge and DTA’s lippage-cap: both hold tiles flush and both use a reusable tool plus a consumable that sets your joint. Clip-and-wedge gives you a fast driven action and one bag of wedges across every spacing; the cap system gives a positive threaded clamp that some tilers simply prefer the feel of. Pick the one your hand likes and buy the matching tool — a system is only as good as consistent tension, so the plier or gun is not optional on large-format work. Leveling is the last step of a good tiling kit: pair it with a clean, chip-free cut from our Tile Cutters & Saws and the right notch and float from our Trowels & Hand Tools. Serving trade tilers and serious DIY renovators across Wollongong, Unanderra and the wider Illawarra and South Coast — bring your tile size into the Unanderra showroom and we’ll match you to the right system.
